Description
Tungsten rolled products available from us, including tungsten plate, sheet, and foil with many options on width, length and thickness. Tungsten metal rolled products are fabricated from pressed and sintered powder metallurgy ingot. W ingots are first forged into block blank, and then rolled to plate, sheet and foil.
We provide plate with purity W≥99.95%, which are widely used in ion implantation, sputtering and coating, medical CT, electronics and vacuum equipment.
Basic information for pure W plate:
| Properties of tungsten | Application of tungsten | Surface treatment of W mill plate |
|---|---|---|
|
|
|
Specifications of our W plate
| Product | Tungsten Plate |
|---|---|
| Item No. | PM74-P |
| Purity | W≥99.95% |
| Specification | ASTM B760 |
| Process | Pressing-sintering-Rolling-Annealing-Surface treatment |
Grinding Plate Dimensions
| Thickness | Width (Max) | length (Max) |
|---|---|---|
| 3.0~4.0 mm (0.118″~0.157″) |
250 mm (9.84″) |
600 mm (23.6″) |
| 4.0-6.0 mm (0.157″~0.236″) |
300 mm (11.8″) |
600 mm (23.6″) mm |
| 6.0~8.0 mm (0.236″~0.315″) |
300 mm (11.8″) |
800 mm (31.5″) |
| 8.0~10.0 mm (0.315″~0.394″) |
300 mm (11.8″) |
750 mm (29.5″) |
| 10.0~14.00 mm (0.394″~0.55″) |
200 mm (7.87″) |
650 mm (25.6″) |
| >14.0 mm (>0.55″) |
200 mm (7.87″) |
500 mm (19.7″) |
Thinner W plates / will be only supplied with chemical cleaned surface.
Packaging for our W plate
W plates are fragile and heavy, carefully handling is need. The standard package for tungsten is wooden crate, so that the products can be protected during handling and transportation. Cartons are also used for small plates.

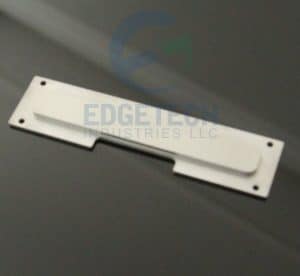

Machined & customized tungsten parts from plate are also available. Contact us at for any inquiries and questions on rolled tungsten and other pure tungsten products.
